RFD102A: Wireless Energy Harvesting Module

RFD102A: Wireless Energy Harvesting Module

14.00

A 5mm x 7mm x 1.8mm QFN module that accepts wireless energy from 60Hz…6GHz and produces a DC output voltage.

Quantity:
Add To Cart

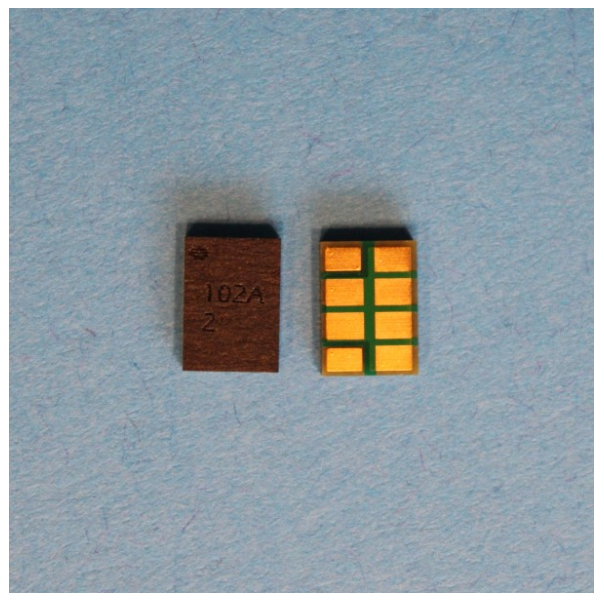

Wireless Energy Harvesting Module (RF to DC Converter Module) A 5mm x 7mm x 1.8mm Land Grid Array module that accepts wireless energy from 60Hz…6GHz and produces a DC output voltage. The module is sensitive to as little as -14dBm input power, it produces 3.3V at 0dBm at 915MHz into a voltmeter. The module can supply up to 19mA of current when driven at a high input power (~+22…+25dBm).  The module has internal ESD protection on the AC input and a 10nF capacitor on the DC output. NOTE: If parts are required on tape & reel additional charges will apply.
